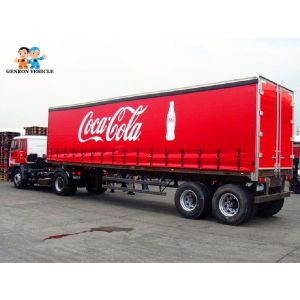

60000kg Bulk Cargo Triaxle Sliding 13m Curtain Side Trailers

Product Categories

Qingdao Genron International Trade Co., Ltd.

Contact Now

Name: 60000kg Bulk Cargo Triaxle Sliding 13m Curtain Side Trailers
Brand: Genron
Price: 15000 USD

Add to Cart

Curtain Side Trailers Size:

Curtain Side Trailers Information:

Tare Weight	About 8.3T
Dimension	13000mm2490mm2860mm (Outer side) 1280023001800mm (work space)
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5, 8.25-20
Tire	12.00R22.5/ 315 80R22.5 12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ,the open door can be chosen freely.
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; One piece of 45L air tanks (special for exporting market)
ABS	Optional
Valve	WABCO valve
Light	LED light ( special for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Curtain Side Trailers Show:

E-Coating/Painting Process:
