Advantages Of 2 Axles / 3 Axles Drop Side Semi Trailer
1. With strong applicability, it has become the first choice of
medium and long-distance freight vehicles .
2. The frame is of beam through structure, and the longitudinal
beam is of straight type or gooseneck type .
3. Adopt new air suspension, American or German mechanical
suspension system, with high strength and strong impact resistance
.
4. The load of each axle is balanced, the pull rod can be adjusted,
and the wheelbase can be adjusted to effectively avoid the
phenomenon of partial running in and gnawing wheel .
Product Description

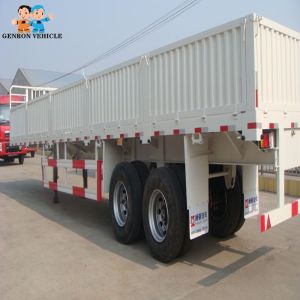

2 Axles / 3 Axles Drop Side Semi Trailer Delivery for 40FT or 20FT containers and groceries, bags, etc.
| Tare Weight | About 7.6T |
| Dimension | 13000mm*2490mm*2860mm |
| Loading Capacity (T) | ≤ 60 T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 9.00-22.5 9.75-22.5(special for export market ) |
| Tire | 12.00R22.5/ 315 80R22.5 (special for export market ) |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (special for export
market ) |
| Spring Leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
| Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
| Bottom Platform | 3mm diamond steel plate |
| Side Wall | 600mm-1500mm ,or can be do box type ,for choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL
brand.One piece of 45L air tankers. |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
,optional |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1
unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of
anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Details of 2 Axles / 3 Axles Drop Side Semi Trailer

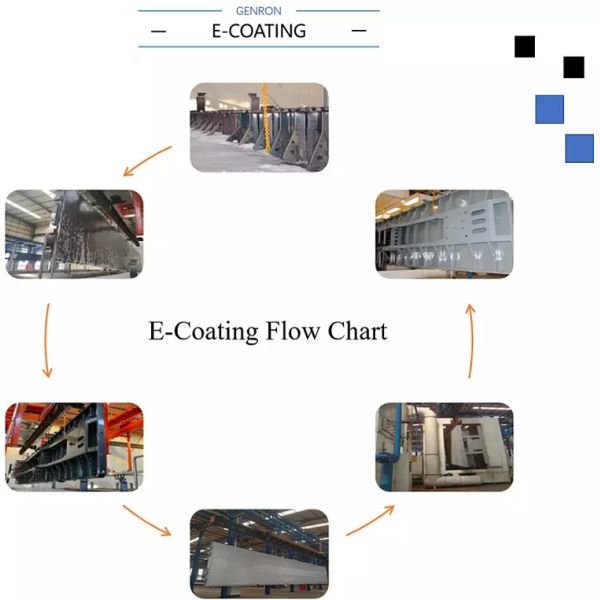

E - COATING
The Workshop
Certifications
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give
you a reasonable price according to the trailer quality .The best
expensive brand is CIMC ( this is government company ).Genron is
private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong
producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value
payoff before delivery time after production finished and
inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will
design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia
,and so on.
